With 4 … 20 mA current and two different voltage outputs (1 … 5 V / 0.5 … 4.5 V ratiometric), the pressure transducers are versatile and can be used in both stationary and mobile applications. They measure relative pressures between 0 and 448 bar with an accuracy of +/-0.25%.

The IP66-protected transmitters are suitable for a wide temperature range of -0 … 85°C, shock-resistant in accordance with EN60067 and vibration-resistant in accordance with EN60068. EMC compatibility has been confirmed by measurements in accordance with EN61000. However, its greatest advantage is its conformity with EU Regulation EC79 for use in hydrogen-powered vehicles.

For this purpose, the pressure diaphragm, including the threaded mount, is precision machined from a single piece of AISI 316L stainless steel. With a burst pressure of over 2200 bar, this design eliminates the need for weld seams, which always represent a potential weak point and a possible leak for the very small H2 molecules. As there is no pressure equalization via an oil-filled cavity as with many other precision transmitters with stainless steel diaphragms, no hydrogen can diffuse into this unventilated cavity.

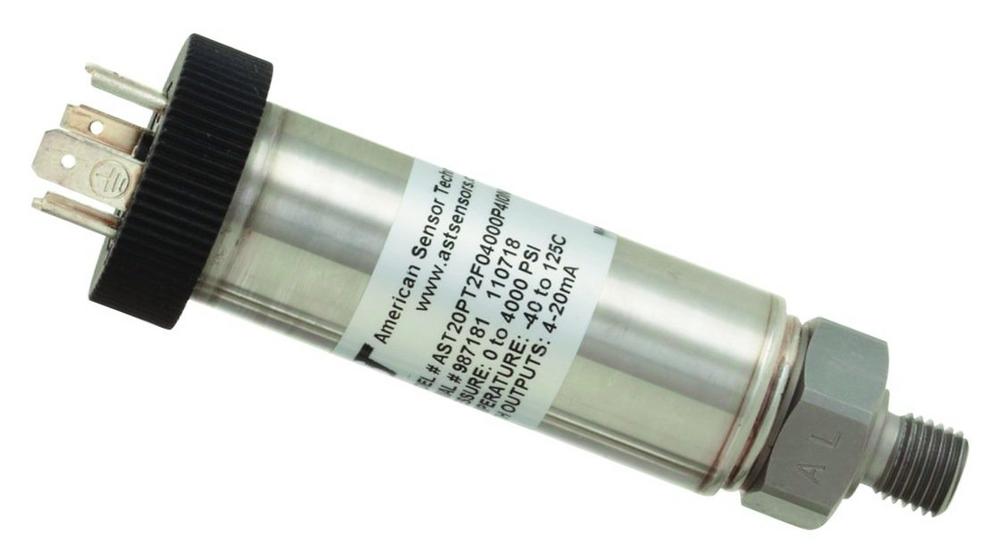

For industrial applications, AMSYS offers the AST2000 (former American Sensor Technology, now TE Connectivity), a comparable pressure transmitter also made of AISI 316L for a variety of pressure ranges between -1 … 2 bar and 0 … 700 bar with several output signals and electrical connections.

As a distributor for sensor technology, AMSYS is one of the specialists in pressure measurement technology on the German-speaking market for TE Connectivity sensors.

At this year’s electronica fair in Munich from November, 12-15., AMSYS GmbH & Co. KG will show its new products at booth 514 in hall B3.
