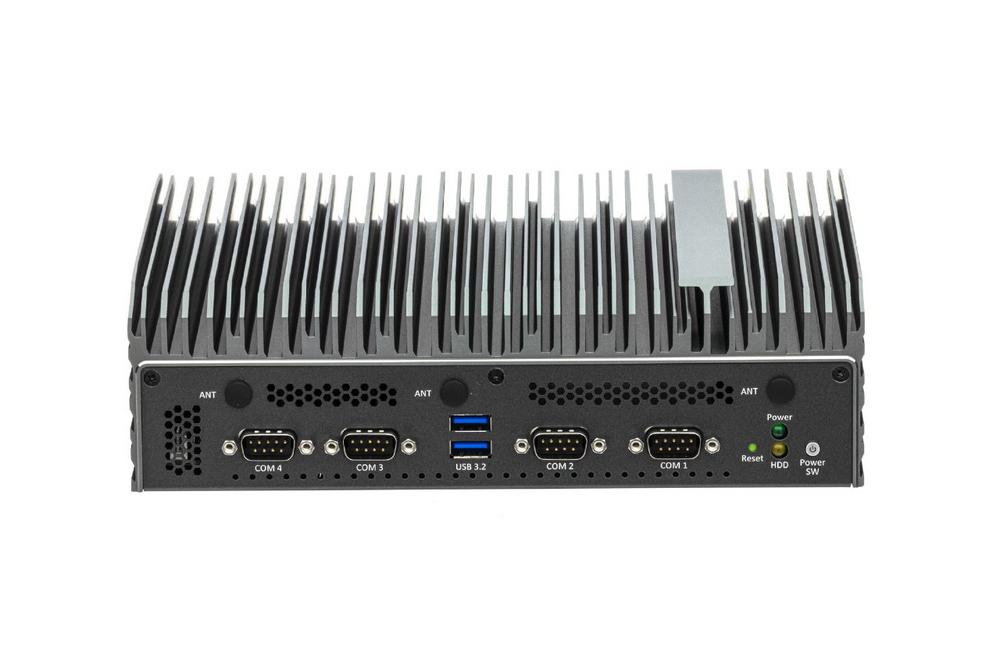

Industrial PC with extended temperature range
Powered by an Intel® Core™ i5-12500TE processor and the integrated UHD Graphics 770, the RUGGED Q670E can handle powerful multimedia content. It can operate in an extended temperature range between -20°C and +60 °C.
3x HDMI for 8K resolution and numerous connections
To fully meet our customers‘ expectations, there are three independent display outputs, including 2x HDMI 2.0 (4K) or 1x HDMI 2.1 for content in a resolution of up to 8K@60Hz. The robust metal housing offers extensive connection options, including 8 x USB 3.2, 3 x LAN ports (including 2x PoE ports) and Wi-Fi 6E.
The RUGGED Q670E can be used for both indoor and outdoor applications such as robotics, public transport, satellite navigation, or even outdoors.
Optional Windows 11 and WiFi
In order to optimally adapt the Mini-PC to the specific requirements of our customers and their applications, it is possible to add numerous options. In addition to an optional operating system such as Windows 11 Pro, Windows 11 IoT or 10 IoT, these also includes a WiFi module.
Thanks to its numerous connections, an extended temperature range and a powerful CPU, the RUGGED Q670E is suitable for a wide range of applications – from industrial environments to outdoor applications. The mini PC is available now and can be configured and ordered according to your wishes at www.spo-comm.de
Highlights and technical data at a glance:
- CPU: Intel® Core® i5-12500TE (6x 1.9 GHz, max. 4.3 GHz)
- GPU: Intel® UHD-Grafik 770
- RAM: 16GB
- SSD: 512 GB M.2
- Max. resolution: 8192 x 8192 @ 60Hz (8K)
- 3 independent displays
- Dimensions (H x W x D): 67 mm x 238 mm x 190 mm
- Passive cooling
- 12 – 24V power input PSU
- Ambient conditions: -20°C up to +60°C at 10-90% non-condensing humidity
Connectors:
- 7x USB 3.2 Gen 2×2
- 1x USB 3.2 Gen 1×1
- 2x HDMI 2.0
- 1x HDMI 2.1
- 1x Gigabit-LAN
- 2x 2.5 Gbps LAN
- 3x COM RS232
- 1x COM RS232 / 422 / 485
- 2x Audio (Mic-In and Line-Out)
- WiFi optional
- Wall mount included
