In addition, when used for the connection of traction motors, this new range of connectors offers a unique solution for phase segregation. Evotrak lite’s metallic segregation ensures no short circuit between two phases.

EvoTrak lite angled offers unbeatable feature combinations in the smallest possible space:

• 1 to 4 poles
• 10 mm diameter contact for a current capacity up to 330 A
• For shielded and unshielded cable cross-sections up to 70 mm²
• Add crimp and screw contacts
• Full metallic connector for high durability and robustness
• Segregation of phases (especially for PMM – Permanent Magnet Motor connections)
• IP2X solution
• IP66-67 for harsh environment

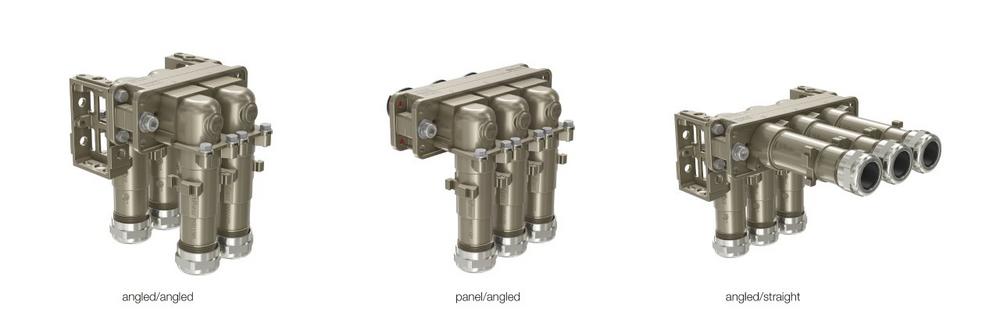

This right-angled version can be combined with other already existing versions of the EvoTrak lite range (straight and panel receptacle) and therefore offers a wide range of possible configurations and cable layouts.

As an industry partner and key supplier in the international railroad sector for more than 30 years, Stäubli has a clear insight into the challenges and expectations of the railroad industry, such as operational continuity, extreme weather conditions, and mechanical stress. That is reflected in its product innovation and quality. Thanks to its global presence, Stäubli offers local support and consulting for customer-specific requirements precisely adapted to the environment and local specifics.
