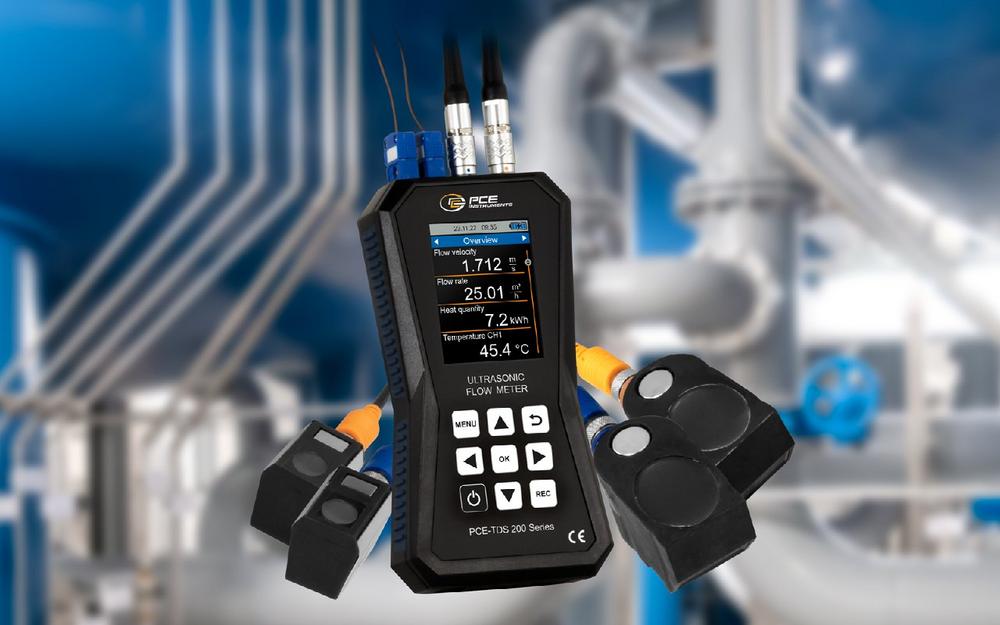

The PCE-TDS 200+ accurately measures the flow of liquids, which is a crucial advance in various steps of power generation. For example, the device can be used to monitor the flow of cooling water in solar thermal systems or to measure the flow in heating systems.
This ultrasonic flow meter also allows the connection of two thermocouple sensors and thus also enables the measurement of thermal energy in a heating or cooling circuit. The PCE-TDS 200+ determines the flow velocity of the medium in the heating circuit and calculates the volume flow taking into account the pipe diameter. The volume flow and the temperature difference between flow and return, which are also measured by ultrasound, make it possible to determine the amount of heat.
By precisely measuring flow, the PCE-TDS 200+ supports efficient control and optimisation of power generation processes. Accurate recording of the flow enables operators to maximise the energy yield and optimise energy consumption at the same time. This helps to increase the efficiency and thus the economic viability of renewable energy plants.
The PCE-TDS 200+ uses the flexibility of a portable ultrasonic flow meter with integrated temperature measurement to cover a maximum of applications.
For the installation of the transducers, an installation aid is available that graphically displays the signal quality. In addition, it shows whether the transducers are positioned at the correct distance from each other. After entering the pipe and medium specifications, the flow velocity, the volume flow and the volume are displayed.
The particular advantage of this ultrasonic flow meter is its cost-effectiveness, flexibility and mobility. The transducers are installed quickly; in comparison, the installation effort for fixed flow meters is significantly greater due to the need to open the pipeline. In addition, this solution is pressure-resistant, leak-proof and there is no wear and tear.
The ultrasonic meter PCE-TDS 200+ is also used in power plants or the chemical industry. Due to the ultrasonic technology, measurements of aggressive and toxic media can be carried out without contact and wear.
The real-time measurements allow deviations or malfunctions to be detected quickly, which enables a timely response to minimise downtime. A data logger can also be set up to save the measurement results to a 32 GB SD card for later evaluation.
Overall, the PCE-TDS 200+ flow meter helps to improve the efficiency, sustainability and cost-effectiveness of energy generation in the context of the energy transition. Precise measurements of the flow enable optimised use of renewable energies and thus make an important contribution to achieving climate targets and a sustainable energy future.
More information can be found here:
www.pce-instruments.com/english/measuring-instruments/test-meters/ultrasonic-flow-meter-kat_152137.htm
Founded in 1999, PCE Deutschland GmbH is a successful provider of professional measurement technology today. The company operates worldwide as PCE Instruments with locations in Asia, Europe and the USA. PCE Instruments is a registered trademark of PCE Holding GmbH, which acts as the holding company for the country locations.
With test equipment from its own PCE product line and equipment from other manufacturers, a wide range of products is offered that is constantly adapted to the current requirements of the users. In the development and design department, experienced engineers and technicians work on developing new measuring and testing devices and continuously improving existing models.
