The embedded PC is available with NVIDIA® Jetson Orin™ Nano 4GB module (7~10W), with NVIDIA® Jetson Orin™ Nano 8GB module (7~15W), or with NVIDIA® Jetson Orin™ NX 8GB module (10~20W) or with NVIDIA® Jetson Orin™ NX 16GB module (10~25W).

Both Orin™ Nano versions have a maximum CPU frequency of 1.5 GHz and a maximum GPU frequency of 625 MHz. The Orin™ NX models each offer a maximum CPU frequency of 2.0GHz. The maximum GPU frequency is 765 MHz for the 8GB variant and 918 MHz for the 16GB variant.

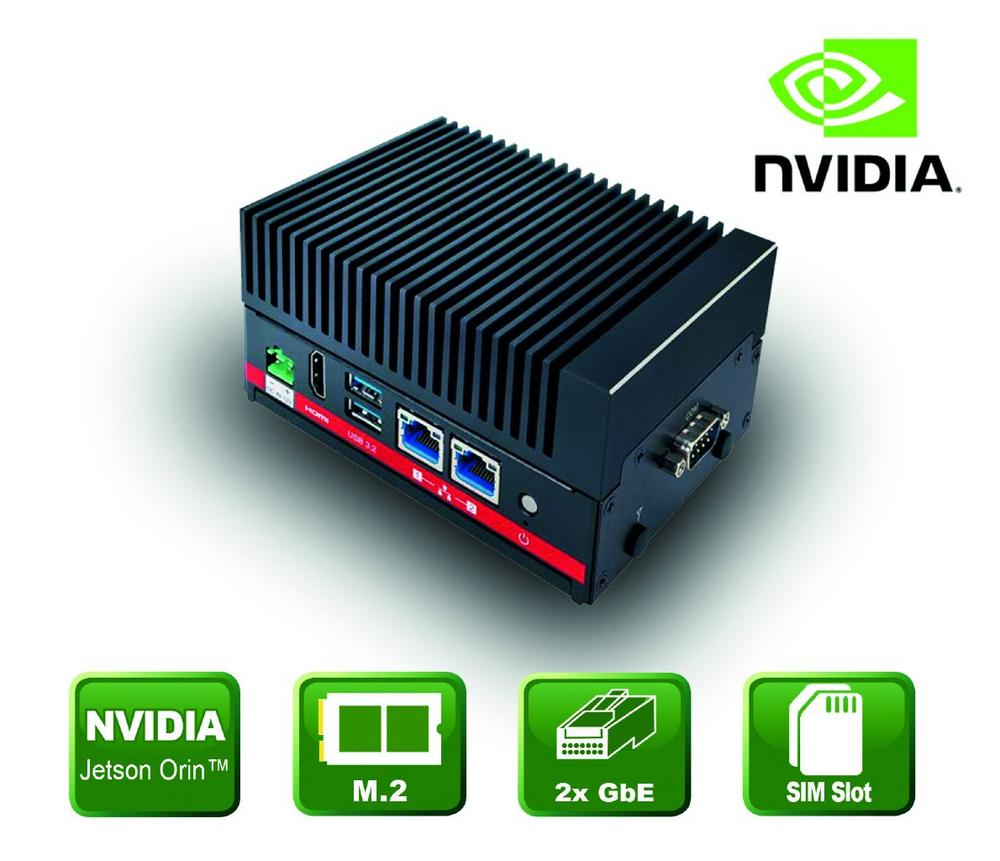

An M.2 2280 M-Key slot is available for mass storage, and two GbE LAN ports provide fast data transfer. Two USB 3.2 ports and an HDMI port are located on the front of the case. For expansions of 5G/LTE or WiFi modules, an M.2 3042/3052 B-Key and an M.2 2230 E-Key slot are available. The case itself has a compact size of only 90x125x65 mm.

The MA1 can be operated with a voltage input of 12V at temperatures from -25°C to 60°C.

Specifications

• NVIDIA® Jetson Orin™ Nano or NX
• Supports 2x DDR5 SO-DIMM RAM (up to 64GB)
• HDMI
• 2x USB 3.2 Gen2,
• 2x GbE LAN
• 2 2280 M-Key
• 2 3042/3052 B-Key
• 2 2230 E-Key
• SIM Slot

Applications

• GPU Computing
• IoT
• OEM
• machine vision
• Automation
• Industrial Control
• Data Logger
