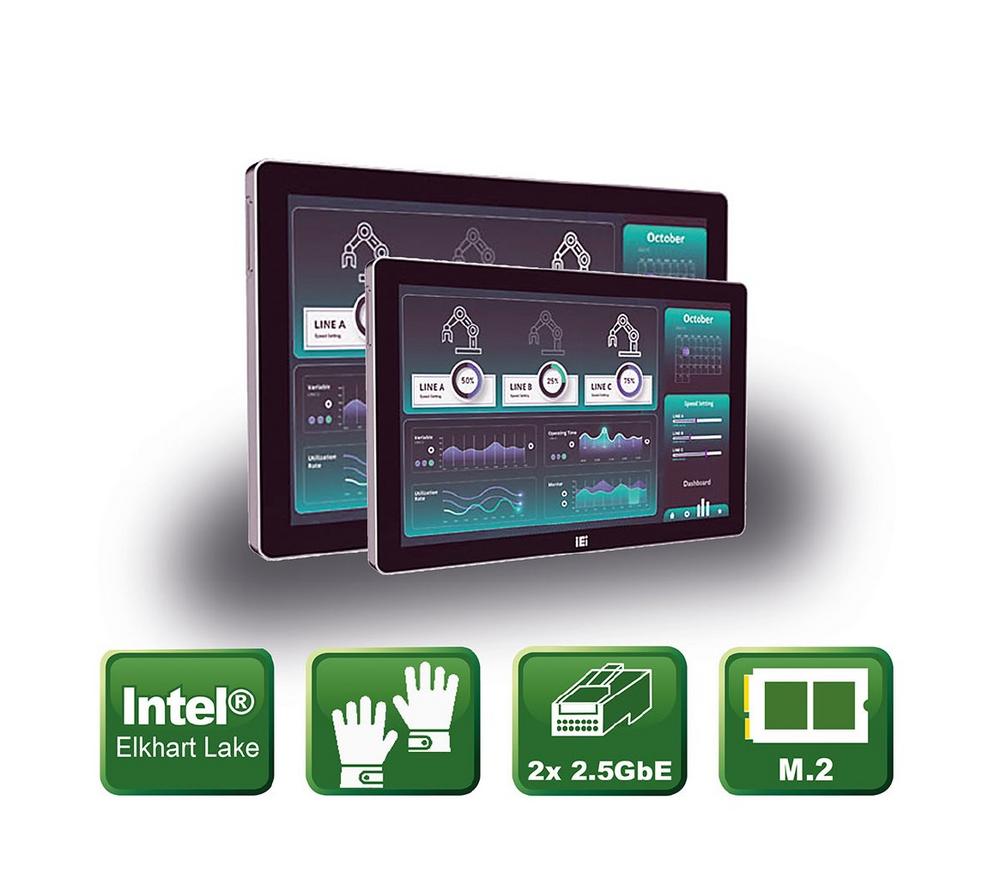

The AFL4-W12-EHL features a slim design with a very narrow bezel, which is not only aesthetically pleasing but also allows the screen to be fully appreciated. The aluminum housing with integrated heat sink is extremely robust and is designed so that the AFL4- EHL can be operated without a fan despite its high-performance CPU.

The panel PC is equipped with a powerful Intel® Celeron® J6412 processor with 4 cores, 2.0 GHz base clock frequency and a burst frequency of 2.60 GHz. In addition, an 8GB LPDDR4x memory is permanently installed.

The optimized PCAP touchscreen of the AFL4-EHL offers 10-finger operation, and is equipped with anti-glare and anti-UV coating. It ensures excellent readability in various lighting conditions. In addition, the touchscreen supports operation with gloves and wet hands, and its 7H hardness rating makes it especially resistant. The BIOS of the AFL4-EHL is touch-enabled and can be operated without a separately connected keyboard.

Depending on the display size, up to five USB interfaces, including 2x USB 3.2 and 3x USB 2.0, as well as 4 COM interfaces are available for peripheral devices.

The AFL4-W12-EHL also offers advanced wireless communication capabilities such as Wi-Fi 6E as well as Bluetooth® 5.2. Furthermore, the AFL4-EHL offers a 2.5 GbE network interface.

For expansion, the AFL4-EHL also offers one or two M.2 slots with M Key, depending on the display size. With an input voltage of 12V DC, the panel PC can be used in environments from -10°C to 60°C. ICP Germany delivers the AFL4-EHL equipped with SSD and operating system as a ready-to-use system on request.

Specifications

• 7"/10.1"/12.1"/13.3" Panel PC
• Intel® Celeron® J6412 processor
• 8 GB LPDDR4x memory onboard
• Fanless
• Narrow Bezel
• PCAP display with 10 point multi-touch, anti-glare, anti-UV
• Touch-enabled BIOS
• 5 GbE LAN
• USB 3.2, USB 2.0, 4x COM

Applications

• Factory Automation
• Retail
• digital signage
• POS
