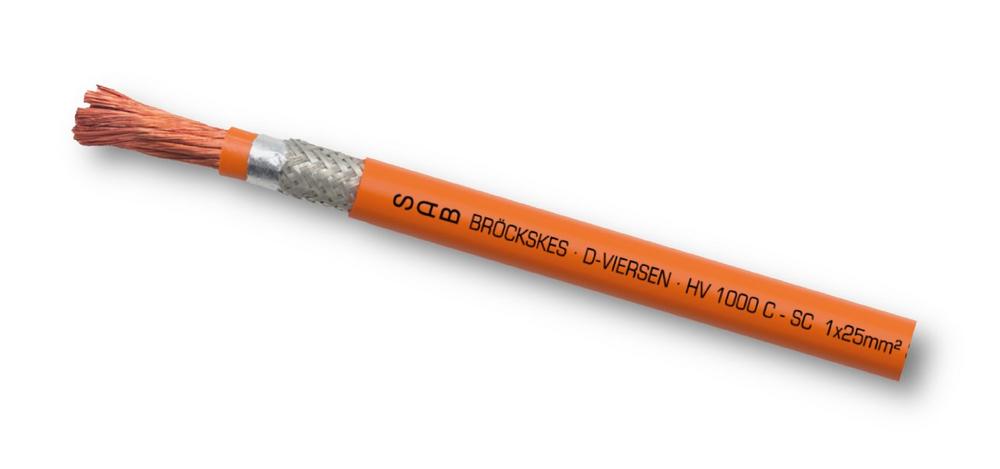

The HV multi-core cable is used, for example, as a connecting cable to the cabin heater, the e-compressor or the HV heat pump in electric and hybrid vehicles. The double EMC-shielded high-voltage cables with bare copper stranding and orange-colored TPE-U sheathing have a low-temperature resistance down to -50°C according to DIN EN 60811-506 and withstand temperatures of up to +125°C for a operating time of up to 2,000 hours. The extremely tensile, abrasion and shear resistant outer sheath allows tight bending radii and, in many cases, eliminates the need for installation with additional protective tubing. Other quality and safety features include flame-retardant and self-extinguishing material properties in accordance with IEC 60332-1-2 as well as standardized high resistance to mud, UV, ozone, and salt water. All materials are free of harmful substances and meet RoHS criteria. In addition to the standard designs, SAB Bröckskes also offers intermediate cross-sections of e.g. 8 mm2 as well as sheaths in other color variants on request.
Founded in 1947 by Peter Bröckskes in Viersen as a one-man business for electrical plant engineering, the company is now one of the world’s leading manufacturers of special cables, with more than 550 employees and sales of over 134 million euros generated in more than 100 countries. The portfolio of SAB Bröckskes GmbH & Co. KG includes cables and conductors in a wide variety of materials as well as cable assembly and metrological solutions. With its products developed and manufactured entirely at its headquarters in Viersen, the company supplies numerous industries ranging from industrial automation and communications technology to manufacturers of construction and agricultural machinery, railroad and marine engineering, and medical technology. With its international representatives and subsidiaries, SAB Bröckskes is globally positioned and has already been awarded the title of "Best Training Company" several times.
