What’s inside the new thermal imaging cameras?

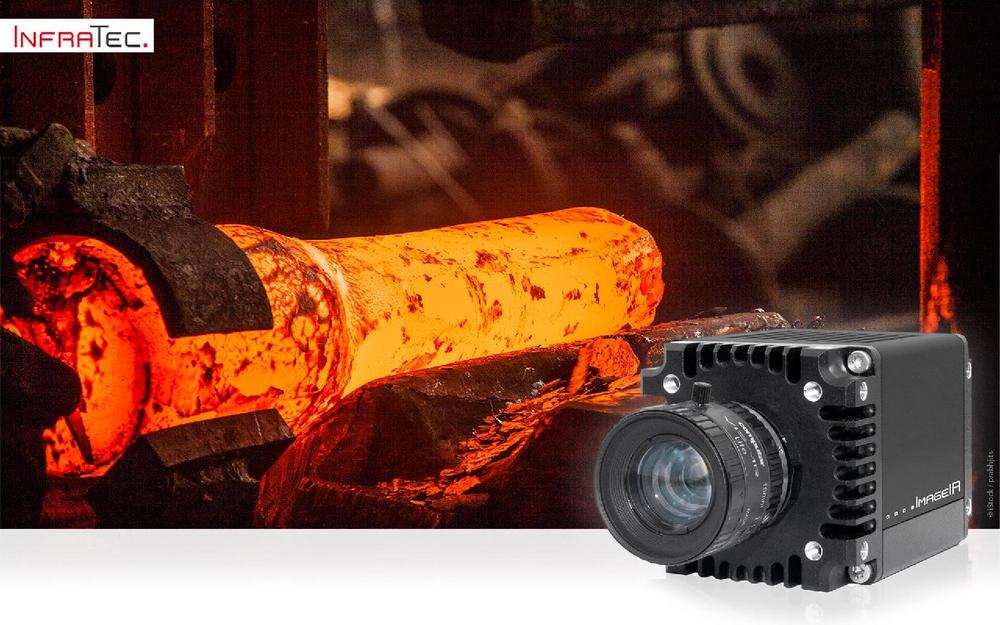

The SWIR infrared cameras ImageIR® 8100 and ImageIR® 9100 are radiometrically calibrated with (640 × 512) and (1,280 × 1,024) IR pixels in VGA and SXGA image format respectively. Both have a pixel pitch of only 5 µm which results in small detector chip diagonals. This allows a comparatively affordable, compact optical design with high imaging quality. In combination with radiometric calibration, brilliant thermographic images with high geometric and thermal resolution can thus be achieved in both formats. Even the smallest geometric and thermal details on large-area objects can be optimally resolved in the SXGA format. Combining the system with interchangeable lenses of different focal lengths allows convenient adaptation to real measurement scenarios.

As the cameras do not require a mechanical cooler, they are suitable for maintenance-free continuous operation. The new InfraTec SWIR cameras provide users with thermographic cameras that are equipped with high measurement accuracy as well as very good short- and long-term stability.

Compact, robust and uncomplicated

Its modern interface concept enables convenient camera control and data acquisition in full-frame format up to
237 Hz. In combination with the control and analysis programs of the IRBIS® 3 software family, the new SWIR infrared cameras from InfraTec are a versatile tool for numerous monitoring and measurement tasks.

Compact design and low weight make the ImageIR® 8100 and ImageIR® 9100 SWIR infrared cameras ideal for integration into existing system environments. Even under adverse environmental conditions, the ImageIR® 8100 and ImageIR® 9100 deliver full performance, as both models are extremely robust. With the associated Software Development Kit (SDK), all functions of the cameras are easily accessible.
