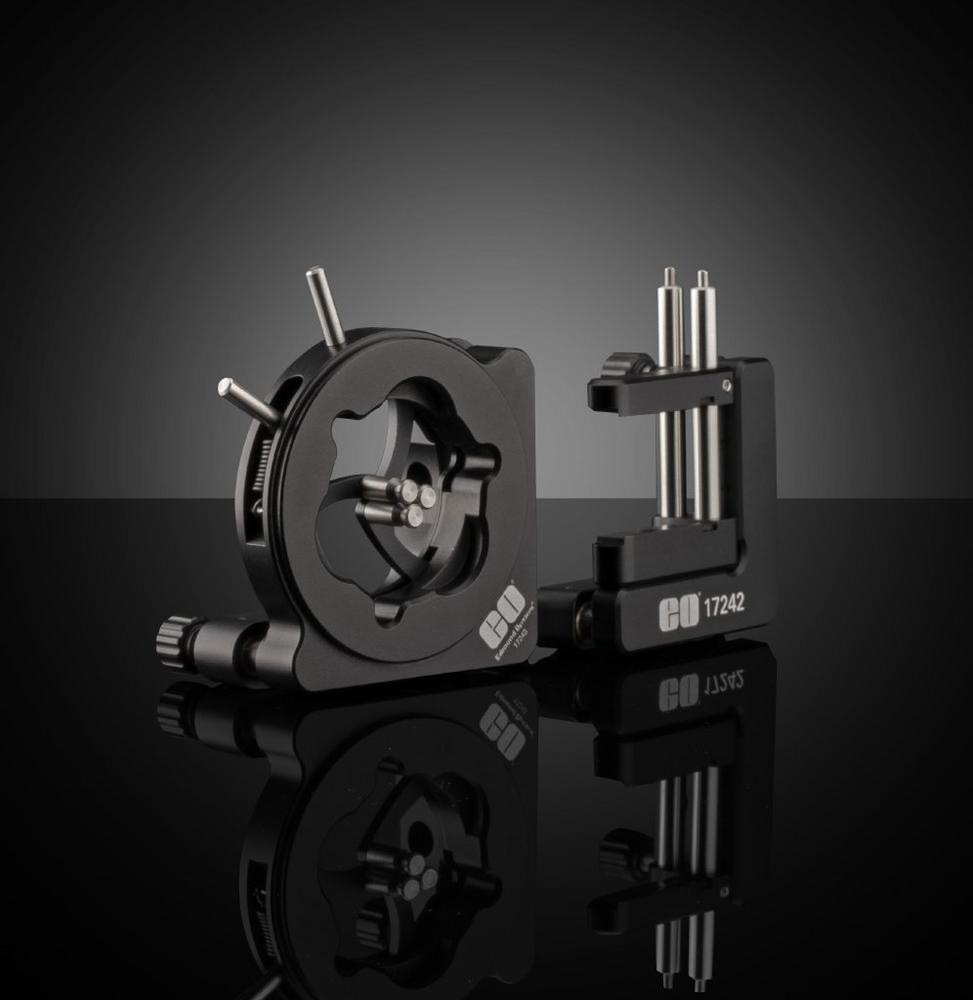

The E-Series Adjustable Size Kinematic Optical Mounts feature wide clear aperture for compatibility with both reflective optics and transmissive optics such as mirrors, beamsplitters, filters, and cylinder lenses. The M6 x 0.25 (101.6 TPI) adjustment screws can be driven by hand or by 2mm sized Allen key for fine adjustment and alignment of optical tip and tilt (±3.5°). Adjustment screws knobs are removable for more compact space-constrained applications. These mounts are compatible with M4, 8-32, and M6 x 1.0 hardware for mounting versatility and compatibility with TECHSPEC® Metric Stainless Steel Mounting Posts and Pedestal Posts.
To view these, and many more exciting, new products offered by Edmund Optics, visit the new products page at www.edmundoptics.eu.
Edmund Optics® (EO) is a leading producer of optics, imaging, and photonics technology. Supporting the R&D, electronics, semiconductor, pharmaceutical and biomedical markets around the globe; EO products are used in a variety of applications ranging from DNA sequencing or retinal eye scanning to high-speed factory automation. Its huge inventory of stock and custom optics allows EO to take customer projects from design to prototype and volume production. EO’s manufacturing capabilities combined with its global distribution network and its extensive product catalogue has earned it the position of one of the world’s largest supplier of optical components.
