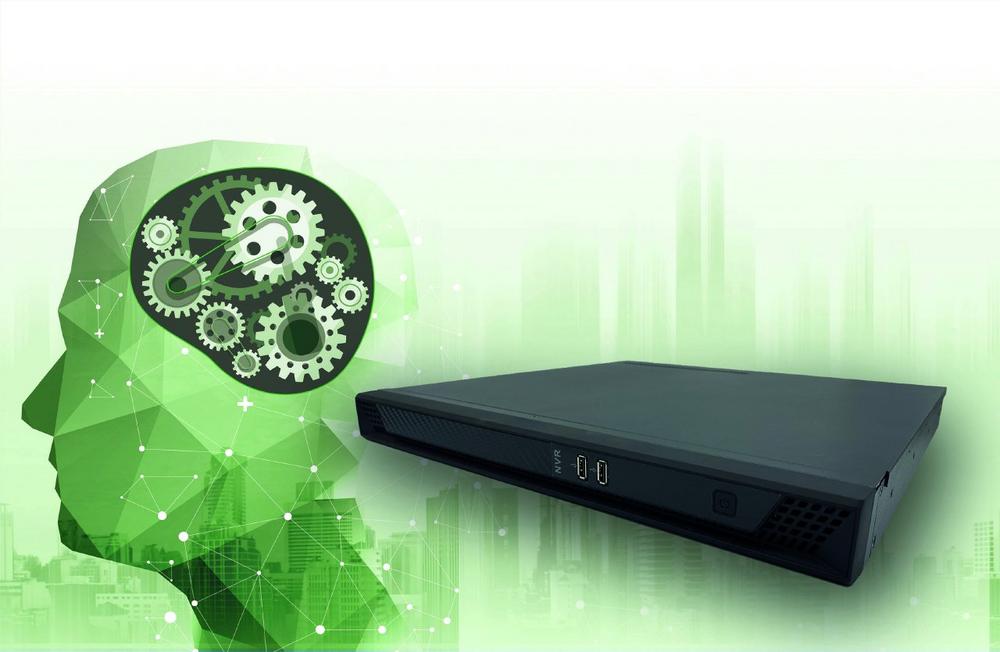

With the NV1, ICP Germany offers a Network Video Recorder (NVR), which is equipped with the power-saving mobile Intel® processors of the 11th generation Core-I (Tiger-Lake) and the iRIS® Xe graphics unit. The NV1 is offered with the Intel® CeleronTM 6305E, Intel® Core-i3-1115G4E, Intel® Core-i5-1145G7E and Intel® Core-i7-1185G7E processors. A maximum of 64GB DDR4 RAM can be installed on the two SO-DIMM slots. The Intel® iRIS® Xe graphics unit provides 1080p video decoding, video capture and playback on up to 64 channels as well as 1080p video analysis and deep learning for up to 10 channels at 7.1TOPS. Two HDMI 1.4 ports with 4K@30Hz resolution, two SATA ports with RAID 0/1 functionality and mounting capability for 3.5" storage media, one 2.5GbE network port with i225-LM IC, one GbE network port with i219-LM, one Nuvoton TPM2.0 module, four USB3.2, two USB2.0, as well as one RS-232 and one RS-485 port are available. Furthermore, the NV1 can be expanded with M.2 2242/2260/2280 and Mini PCIe-Express full-size modules. Optionally, the NV1 is available with up to 16 PoE IEEE802.3 af/at with a maximum output power of 150 watts. The AI performance can be further extended with a Myriad® X VPU and the Intel® OpenVINOTM. The NV1 can operate in a voltage range of 100 to 240VAC in a temperature range of 0 °C to 50 °C. On request, ICP delivers the NV1 fully assembled with industrial RAM and storage media as well as operating system.

ICP. Industrial Computer Products …by people who care!

Specifications

• 19" 1 U case
• 11th generation Intel® CoreTM I processors (Tiger Lake – UP3)
• 16 channel H.265/H.264 decoding capability and simultaneous playback
• 16 channel AI video analysis with 7.1TOPS
• Up to 16 PoE network ports
• Dual 4K HDMI display ports
• 64GB DDR4 SO-DIMM memory
• 5GbE, M.2 2280, mini PCI Express Full Size
• 2, RS-232, RS-485

Applications

• Machine Vision
• Recording device
• Video monitoring and analysis

Product Link

https://www.icp-deutschland.de/index.php?stoken=96E8CDCE&lang=0&cl=alist&searchparam=nv1

Datasheet

https://files.icp-deutschland.de/produkte/KC003101/web/icp/NV1-datasheet-20220412.pdf
