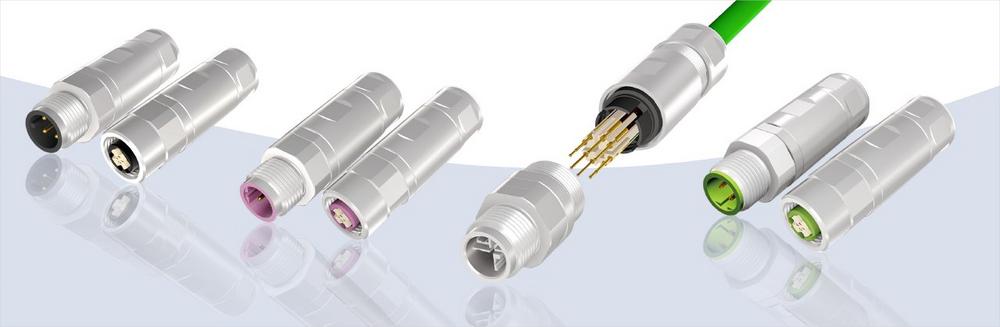

CONEC M12 field attachable connectors with crimp connection offers the appropriate solution and are available in codings A, B, D, and X. The very compact and light design is ideal for applications with low space and weight.
CONEC M12 Crimp X-coded is designed for Ethernet applications with data rates up to 10 Gigabit/s, allowing applications with high data rates to be implemented in an industrial environment.
The turned crimp contacts can take stranded wire cross-sections from AWG 28 to AWG 22 (for X-coding) and from AWG 24 to AWG 18 (for A-, B- and D-coding) and are thus suitable for a wide range of commercial industrial data cables.
The advantage of the machined crimp contacts is a reliable and gas-tight connection to the stranded wire which ensures constant low resistance even in extreme conditions. In addition, the female connectors are also available with so-called closed entry contacts offering an additional plug-in security of the socket contacts.
The crimp contacts can be processed with commercially available crimping tool and machinery; only for the X-coded version, a corresponding CONEC crimping tool/ selector must be used.
The CONEC M12 Crimp connectors are protected against loosening due to vibrations during operation by a tactile vibration lock. The connector shell is entirely made of metal and therefore fully shielded. The connectors are designed for cable diameter of 4.5 to 8.3 mm and the shielding connection is done 360° to the full extent.
All versions meet protection degree IP67 when mated.
Advantages:
- Quick and safe assembly in the field
- Compact design
- Low weight
- Robust design
- Turned contacts
- 360° shield connection
- Wide range of variants (A, B, D, X)
- Transfer rate up to 10 Gigabit / s (X encoded)
- Suitable for a wide range of industrial cables
Fields of application:
- Transportation
- Automation technology
- Industrial Ethernet
- Control engineering
- Medical
- Building automation
- Process automation
- Security and surveillance systems
- Communication technology
For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.
The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.
As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.
In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.
CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Reblublic, Poland and Slovakia.
The product portfolio includes connectors of the following categories:
• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions
The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
