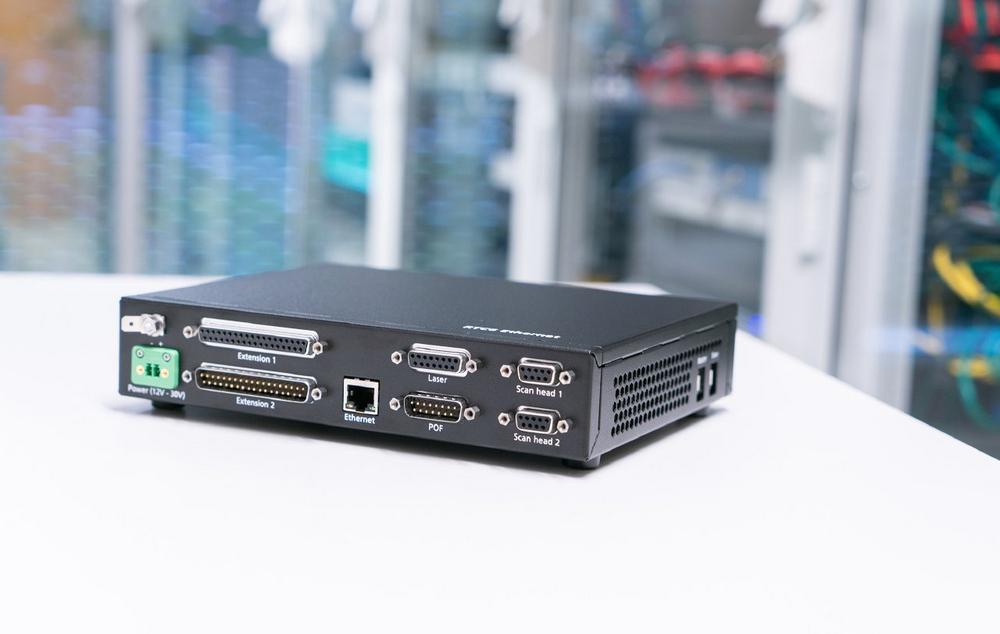

Standards, standardized components and uniform fastening systems simplify day-to-day operations and the setup of complex machines. With its practical RTC6 EtherBox, SCANLAB has transformed the control electronics of laser machining systems into an easy-to-integrate ‚click-in system‘. The handy box, with a high-quality, powder-coated aluminum housing, can be attached to a standard DIN rail in a switch cabinet in a matter of seconds. It also has rubber feet for stability when used in a freestanding position.

To guarantee faultless operation around the clock, the RTC6 EtherBox features active air cooling. All electrical connections, such as the scanning head connection (SL2-100), laser control, PC connection via Ethernet, power supply, and analog and digital inputs and outputs, are easily accessible from the outside of the portable housing.

An added benefit for users: Stand-alone operation

There are various use cases and fields of application for this compact box. The RTC6 Ethernet card inside the housing offers ’stand-alone‘ functionality as standard. This means a pre-programmed laser job can be initiated at any time, for instance via a light barrier or an alternative external signal.

Using the box as a stand-alone control mechanism is particularly beneficial for laser processes with high throughput, low complexity and negligible changes; for example, when cutting displays, for identical laser markings or laser cleaning. The RTC6 Ethernet card works independently and is not linked to a PC, which means cost savings for the system configuration.
