Most of the requirements for higher data rates stem from sensors like cameras around the car, 5G Telematic units (TCUs) and networking backbones for multiple domain controllers. MultiGBASE-T1 Ethernet standard meets these needs by including 2.5G, 5G and 10G speeds. Compared to 1000BASE-T1, MultiGBASE-T1 uses PAM4 (4 levels) modulation with symbol rates of 1.4, 2.8 and 5.6 GHz. The Open Alliance TC15 PMA compliance test specification addressing this standard is still in a draft state.

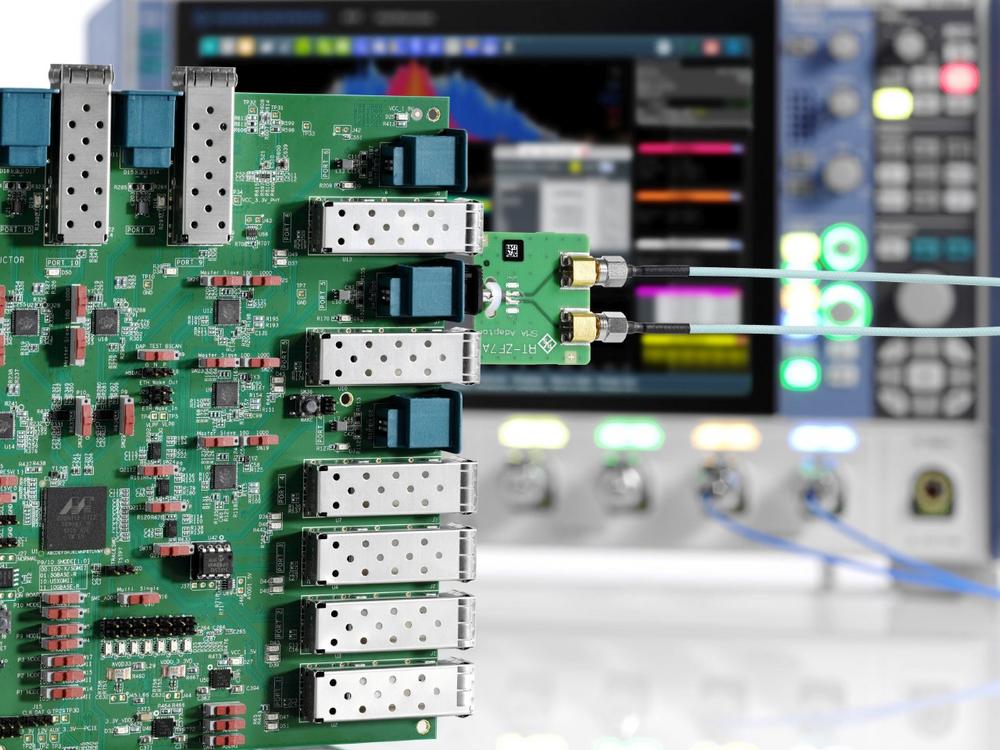

With the new K88 option, R&S RTO and R&S RTP oscilloscopes now offer a full transmitter compliance solution for MultiGBASE-T1 based on the IEEE802.3ch spec for the PHY layer (layer 1). The solution comes in a modern user interface and is easy to use offering guided tests and a very comprehensive report.

Rohde & Schwarz offers a complete automotive Ethernet compliance test solution including using a vector network analyzer such as the R&S ZND for MDI return loss measurements. Control of the measuring instruments, calculation of the results and documentation can be automated with the R&S ScopeSuite test software. A test wizard guides the user step by step through the test procedure with illustrated instructions. Automatic test sequences allow for a fast, reliable test execution and minimize the probability for user error. A configurable test report documents the test results. R&S ScopeSuite is a standalone application that can run on the oscilloscope or a separate PC.

The R&S RTO-K88 and RTP-K88 compliance test software options for MultiGBASE-T1 are now available from Rohde & Schwarz. For more information about Rohde & Schwarz automotive Ethernet solutions, visit https://www.rohde-schwarz.com/_231834.html
