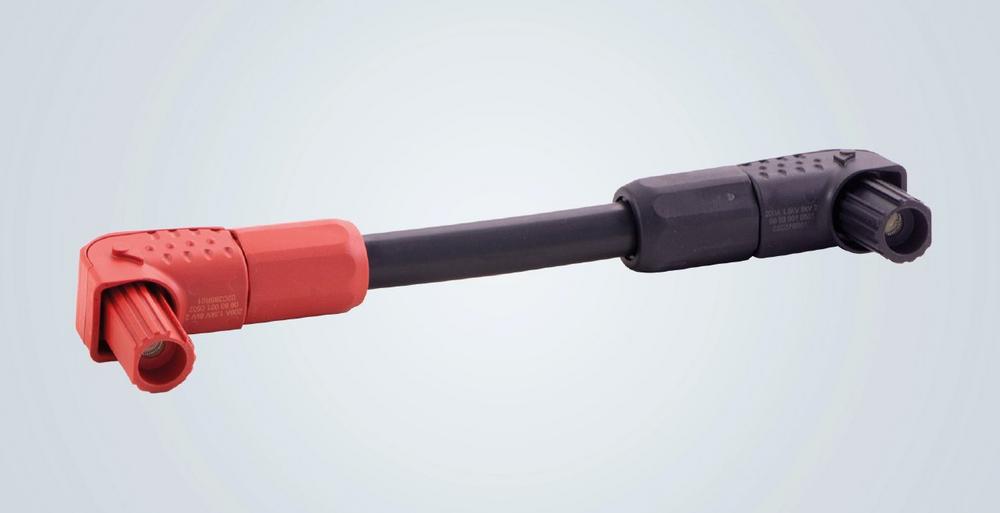

The assemblies are the Han^® S 200 CA-c-b/r 25², CA-c-b/r 35² and CA-c-b/r 50 mm², and are available with cable lengths of 20 cm, 30 cm, 40 cm and 50 cm. They are suitable for temperatures ranging between -50 and +120 degrees C°. The fabrication material is halogen-free as well as ozone-resistant. The voltage limits are 1.8 kV (25 mm²) – 3 kV (50 mm²) AC and 2.7 (25 mm²) – 4.5 kV (50 mm²) DC. The Han^® S assemblies meet various standards, including EN 45545-2 and NF F 16-101.

Han^® S offers optimal safety for the construction of battery storage systems since its design meets all technical requirements — including the new UL 4128 standard for stationary energy storage systems, currently the highest standard the market requires.

Finger-protected contacts mean safe installation

The single-pin connector is well-suited for front-mounting drawers on energy storage devices and can transmit rated currents of up to 200 A at 1500 V. The connector ensures safe installation thanks to finger-protected contacts with various types of connection (M8 bolts or busbars) and permits users to visually check the locking status. In addition, the product is vibration-proof and comes in two different colours, red (+) and black (-). The Han^® S features a mechanical coding system that makes it impossible to incorrectly connect the polarity. This feature makes the new connector an ideal solution for connecting large numbers of battery modules.
