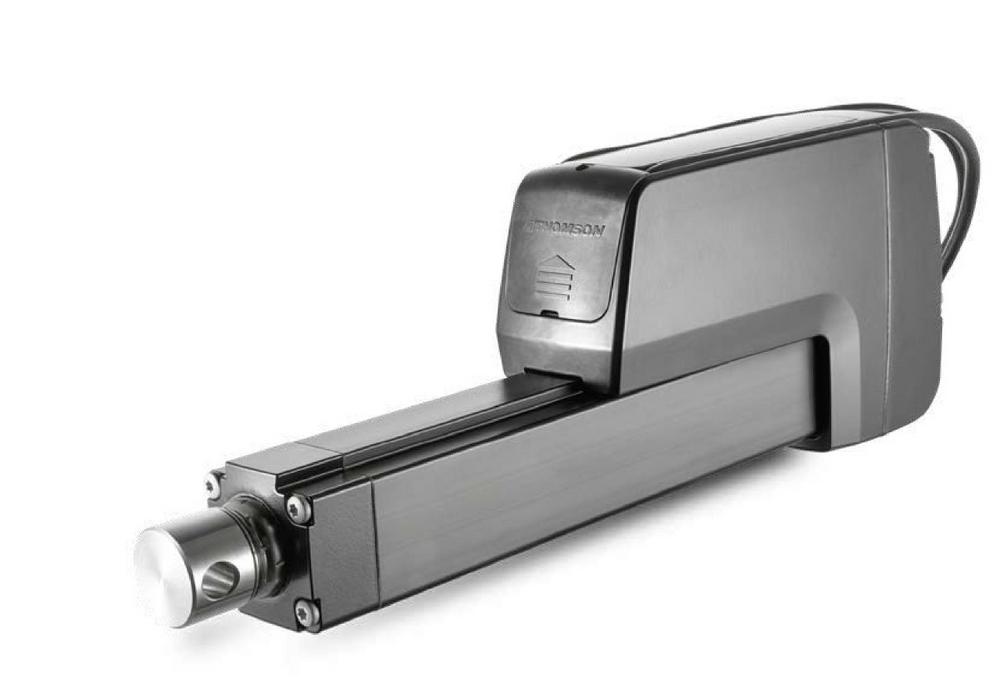

The new Electrak LL series covers two models with dynamic load ratings of 4 and 6 kN respectively. Both have static load rating to 18 kN and offer 100 to 500 mm stroke in ordering increments of 50 mm. The long-life ball-screw and nut assembly has a load locking feature and a holding brake to prevent back-driving. With a nominal 24 V DC input voltage with a generous supply variation tolerance, the Electrak LL has a constant speed regardless of the actual load so predictable machine performance is achievable. Those speeds are 30 mm/s for the 4 kN version and 15 mm/s for the or 6 kN. The end-to-end position for each axis may be triggered by separate extend and retract inputs within the stroke, or with adjustable end of stroke limit switches facilitated with controlled braking thus ensuring repeatable operation and protection for both connected equipment and the actuator. Other controls and safety features built into the onboard control electronics include current monitoring that isolates the supply on overload, replicating a mechanical clutch. The actuator is also equipped with voltage and temperature monitoring as well as load trip point calibration.
The robust and durable Electrak LL is housed in a high corrosion protected aluminium and polycarbonate casing, designed for washdown, and including UV-resistant surface treatment. All external hardware fittings and a wide selection of optional front and rear actuator interfacing adapters are in stainless steel. As with Thomson Industries’ Electrak HD series demanding environment actuators, the new LL is particularly suitable for pneumatic and hydraulic-to-electric application conversions.
The Electrak LL’s high-efficiency brushless drive system suits battery powered applications whilst the full load duty cycle is specified at 35% – that’s 10 to 20% higher than for other comparable electric linear actuators. At reduced loads, the duty cycle can match 100%. Maintenance-free life is specified at up to 600 km actuator travel. Detailed life vs. load calculations can be assessed by Heason Technology engineers and a comprehensive sales brochure including all specifications, options and accessories for the Electrak LL is available on request.
Heason Technology supplies and supports a wide range of linear motion components from Thomson Industries and other leading motion equipment suppliers. With its own in-house design and system integration capability, the motion specialist offers everything from single components as stepper and servo motors, intelligent drives, motion controls and positioning mechanics, to fully automated systems that include bespoke mechanics complete with drive electronics and automation control software. For further information, please visit www.heason.com
The Slinfold – West Sussex based motion specialist combines its own manufacturing and design & build systems integration expertise with motion products, components and systems from a small but select group of globally recognised distribution partners. Heason Technology’s comprehensive range includes servo and stepper motors with associated drives and motion controls; linear and rotary positioning mechanics; linear and rotary encoders; ceramic servo motors and positioning stages; high precision gearboxes; rotary actuators and slip ring assemblies. Customised system solutions include automated motion axes, specialised position controls and bespoke positioning mechanics.
