The M12 X-coded connector was developed to ensure reliable transmission of up to 10 Gbit/s in industrial environments with Cat.6A performance.
The CONEC range of connection cables with Cat. 6A performance is implemented by the M12 X-coded to M12 X-coded version and by the design of M12 X-coded to RJ45. This allows cabling from the field level with increased protection requirements (IP67) directly into the control level, i.e. into a protected environment.
In order to lead the interface from a device in the control with RJ45 interface at the control cabinet to the outside, the product range is supplemented by an M12 X-coded flange with overmoulded cable connection. This allows the interface to be routed without having to carry out time-consuming assembly work in the field. The patch cables are supplied fully assembled and tested.
In case the conditions on site do not allow the use of ready-made cable assemblies, the field-attachable M12 X-coded connector with crimp connection completes the CONEC product range.

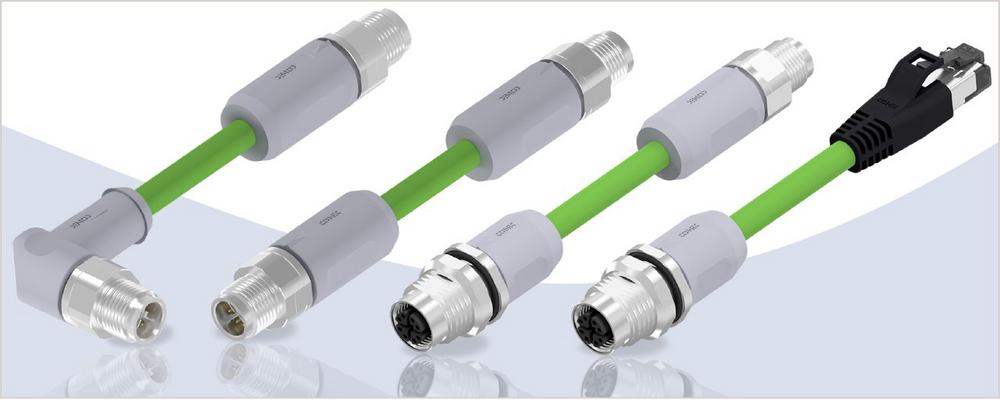

All M12 X-coded patch cords are available in both straight and angled versions and meet the requirements of Cat.6A up to 500 MHz. When mated, the PUR overmoulded connectors meet protection class IP65/IP67 and can thus be used in industrial environments.
Advantages:
- Easy assembly in the field
- Transmission rate up to 10 Gbit/s
- Compact design
- Protection class IP67
- 360° shielded
Fields of application:
- Automation technology
- Industrial interfaces
- Communication technology
- Machine manufacturing
- Control technology
- Telecommunications
- Wireless controller
For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.
The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.
As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.
In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.
CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Republic, Poland and France.
The product portfolio includes connectors of the following categories:
– D-SUB/IP67 D-SUB Connectors
– IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
– CONEC Hybrid Connectors
– Connectors for agricultural and construction machines
– Circular Connectors
– PCB Connectors
– Customer specific solutions
The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
