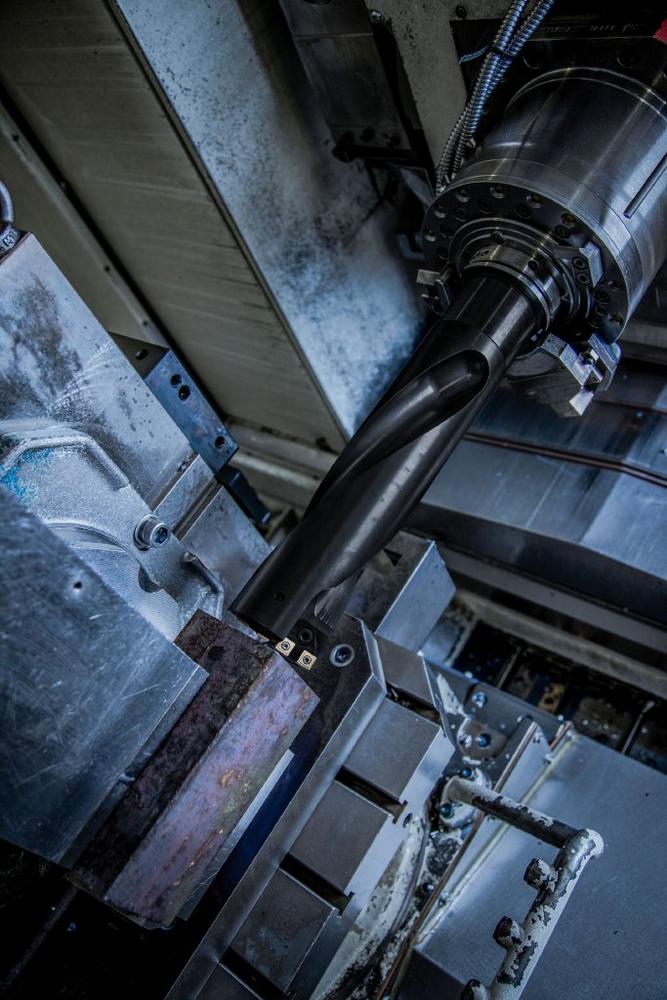

The KUB Pentron indexable insert drills from the KOMET range have proven their worth over many years in numerous industries. However, the standard tools were limited to a diameter range of 14 to 46 mm – too little for many users. For large holes (e.g. for bearing seats), they would like to use similar, reliable, high-performance KUB Pentron drilling tools. Which is why CERATIZIT decided to develop a new KUB Pentron CS (CS = Cartridge Solution) designed for large diameters up to 96 mm and a length to diameter ratio of up to 3xD.
Thanks to its modular structure, the KUB Pentron CS is suitable for universal use and for many special applications. It consists of a burnished, wear-resistant KUB Pentron base holder in the accustomed high quality from KOMET. CERATIZIT has turned to the proven KOMET ABS system for the coupling system on the KUB Pentron CS, as it offers significant advantages compared to other interfaces, such as the cylindrical shank, especially for large holes. These include a higher clamping force and torsional stiffness as well as better values with regard to force transmission, accuracy and machining performance.
Two, high-precision cartridge seats are located in the base body. While the inner cartridge is able to cover a specific diameter range, the outer cartridge determines the bore diameter. Each cartridge contains two SOGX indexable inserts from the CERATIZIT standard portfolio, which offers a huge selection. The optimum cutting insert for every material and application can be found there – with respect to the substrate, coating and special geometries, such as those for better chip control.
More information can be found at https://cuttingtools.ceratizit.com/gb/en/kub-pentron-cs
CERATIZIT – with passion and a pioneering spirit for hard materials
For over 95 years, CERATIZIT has been a pioneer in developing exceptional hard material solutions for machining and wear protection. The private company, with registered offices in Mamer, Luxembourg, develops and produces highly specialised cutting tools, indexable inserts, rods made from hard materials and wear parts. The CERATIZIT Group is the global market leader in various application segments and successfully develops new carbide, cermet and ceramic grades, such as for wood and stone working.
With more than 8,000 employees at more than 30 production facilities and a sales network with over 50 branches, CERATIZIT is a global player in the carbide industry. The company’s international network includes subsidiary Stadler Metalle and joint venture CB-CERATIZIT.
The technology leader is continually investing in research and development and holds more than 1,000 patents. Innovative hard material solutions from CERATIZIT are used in various sectors, including mechanical engineering and toolmaking, in the automotive and aerospace industries and in the oil, gas and medical industries.
