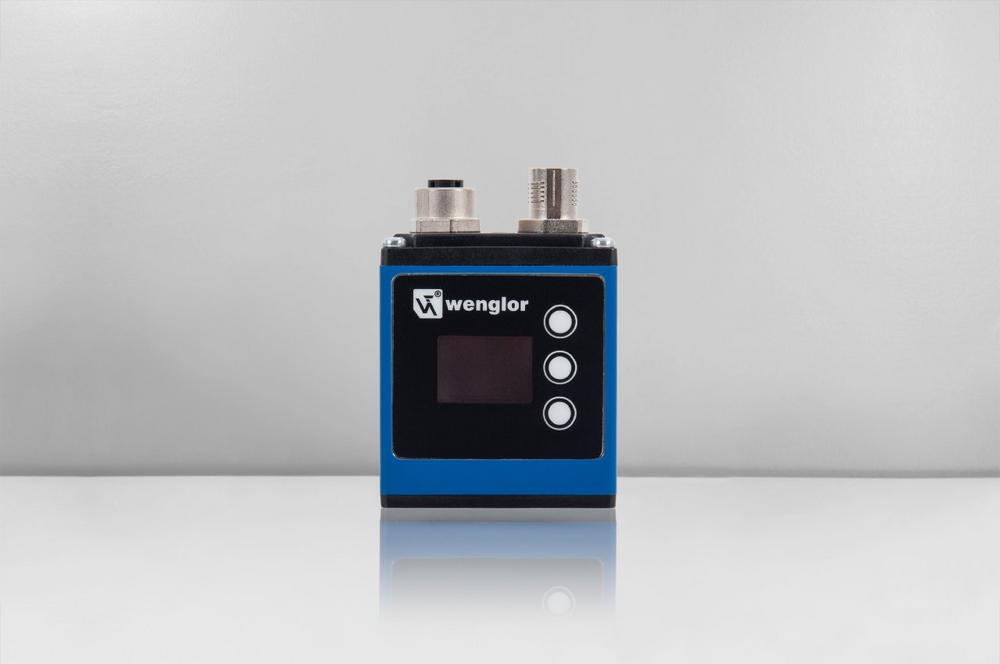

With the integrated CCD line, the BLN series barcode line scanner sets itself apart in particular with its high reading performance. The large scanning area is 20 to 200 mm or 30 to 520 mm depending on the model, which greatly increases flexibility in system design and installation. The compact design (29 x 60 x 52 mm) also enables installation in tight spaces such as complex intralogistics facilities. The BLN scanner reliably reads 1D codes with a very high density of over 0.075 mm in static and dynamic applications of up to 0.3 m/s with a scan rate of 510 scans/s. The decoded information is sent directly to the system via an integrated Ethernet or RS-232 interface.
Visible red light helps to ensure that the code is optimally aligned in the scanning area when used in manual workstations. The successful decoding is then output directly to the operator via a green “Good Read” LED, the practical OLED display shows the information stored in the code.
In addition to the easy operating concept requiring no additional software, the smart sensor impresses with its robust housing design with IP67 degree of protection, which also makes it suitable for use in harsh industrial environments.
The highlights at a glance
- Large scanning area from 20 to 200 mm or 30 to 520 mm
- Compact design for installation in space-restricted systems
- Ethernet and RS-232 interface
- Visible red light for easy alignment
- Green “Good Read” LED and OLED display to show the reading status
Further information is available at:
www.wenglor.com/BLN
wenglor develops innovative automation technologies including sensors, as well as safety and 2D/3D camera systems with state-of-the-art communication standards for the worldwide market. Founded as a two-man business in 1983, the family company has since evolved into one of the most important international sensor suppliers with more than 900 employees around the world. The company with headquarters on Lake Constance in Tettnang, Germany, meets industrial automation challenges for customers in all industry sectors – from automobile manufacturing to the packaging industry. More than 55, 000 from 45 countries all over the world are already placing their faith in wenglor’s innovative products.
