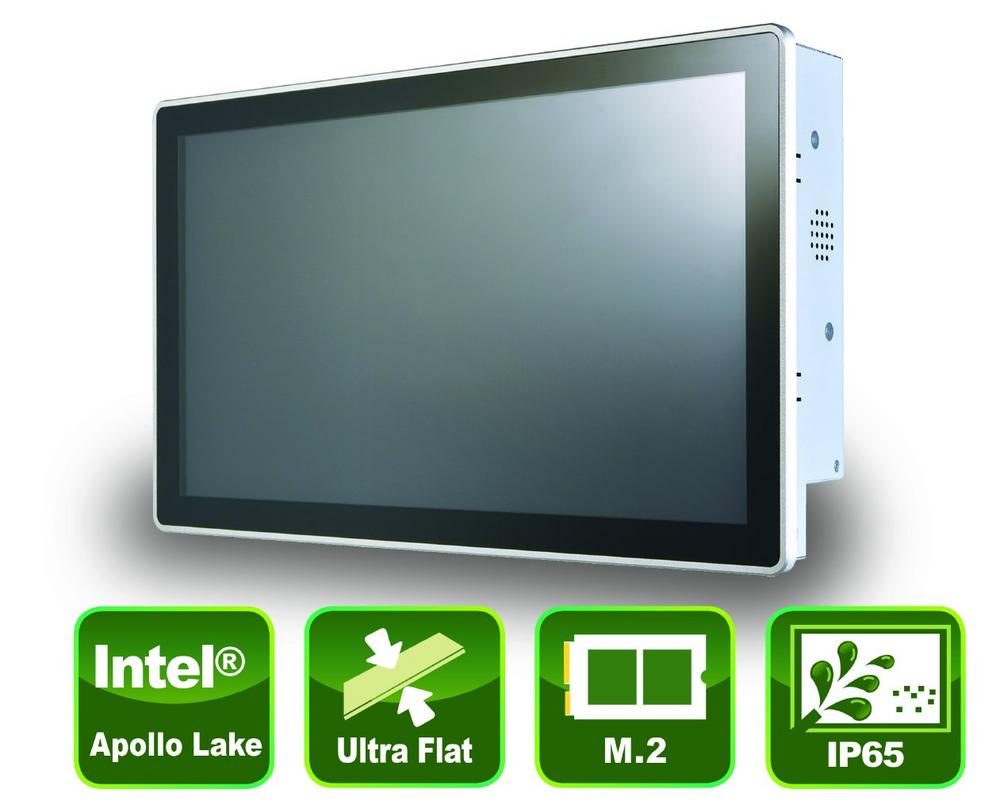

With the P156-10AI, another Panel PC from the P-series of ICP Germany comes onto the market, which is equipped with True Flat PCAP Touch Technology. The P156-10AI offers a 15.6" TFT-LC display with Full HD resolution (1920×1080) and 16.2 million colors at a color depth of 8 bit. The display delivers a brightness of 450 cd/m2 and a viewing angle stability of 170°/170°. The front offers IP65 protection and the airbonded 10-point True-Flat Projected Capacitve Touch Screen provides a crystal clear image. Anti-glare, anti-reflection and anti-bacterial coatings are optionally available. The cornerstone of the P156-10AI is the Thin-Mini-ITX Board PD10-AI, which is equipped with a dual core Intel® Apollo Lake-M CeleronTM N3350 with a maximum turbo frequency of 2.4 Ghz. Optionally, other processors such as the quad-core PentiumTM N4200 with a maximum 2.5GHz are also available. In terms of memory, the P156-10AI can be equipped with a maximum of 8GB DDR3L with 1867MHz clock frequency. On the I/O Shield, the motherboard provides two RJ45 Gigabit Ethernet ports with Intel® I211-AT network chips, one HDMI and one display port each for connecting additional displays and four USB3.0 interfaces. Furthermore two RS-232 interfaces and an eight bit GPIO slot are provided. A 2.5" mounting frame with SATA connection is available for storage media. Via the M.2 2230 E Key and the M.2 2280 B Key with PCIe and USB signal the P156-10AI can be equipped with add-on cards.

The P156-10AI is designed for a voltage range from 8 to 24 Volt DC and can be operated in a temperature range from -20 °C to 55 °C. The compact size of 387x236x68 mm and the possibility to operate the on/off switch remotely allow easy panel mounting. Suitable for the P156-10AI, ICP Germany supplies industrial storage media and main memory.

ICP. Industrial Computer Products …by people who care!

Product link:
https://www.icp-deutschland.de/index.php?stoken=1E4ACA1C&lang=0&cl=search&searchparam=p156ai

Datasheet:
https://files.icp-deutschland.de/produkte/KC002575/web/icp/P156-10AI-Panel-PC-datasheet-20200813.pdf

Specifications

• 6" Full-HD TFT-LCD
• With Intel® Apollo Lake-M processors
• Projected Capacitive True-Flat 10 point touch screen
• IP65 Aluminium front panel
• Fanless Design

Applications

• Display systems
• Info terminals
• Self-Service Terminal
• Automation Controller
• Embedded Device Dashboard
• Input device for production lines
