With its modern interface concept, the PIR uc 605 allows convenient camera control and data acquisition. An Ethernet interface enables recordings to be saved directly to a PC in real time at image frequencies of up to 25 Hz for further processing. In combination with the control and analysis programs of the IRBIS® 3 software family, PIR uc 605 is a versatile tool. The associated Software Development Kit (SDK) enables rapid integration into existing system environments.

Flexibly configurable
The IR camera module is powered by an uncooled microbolometer FPA detector with (640 × 480) IR pixels, which provides detailed thermal images in high resolution. Each pixel in the image represents a temperature measurement point. Here the infrared camera detects even small temperature differences and is perfect for the analysis of temperature distributions and their changes over time.

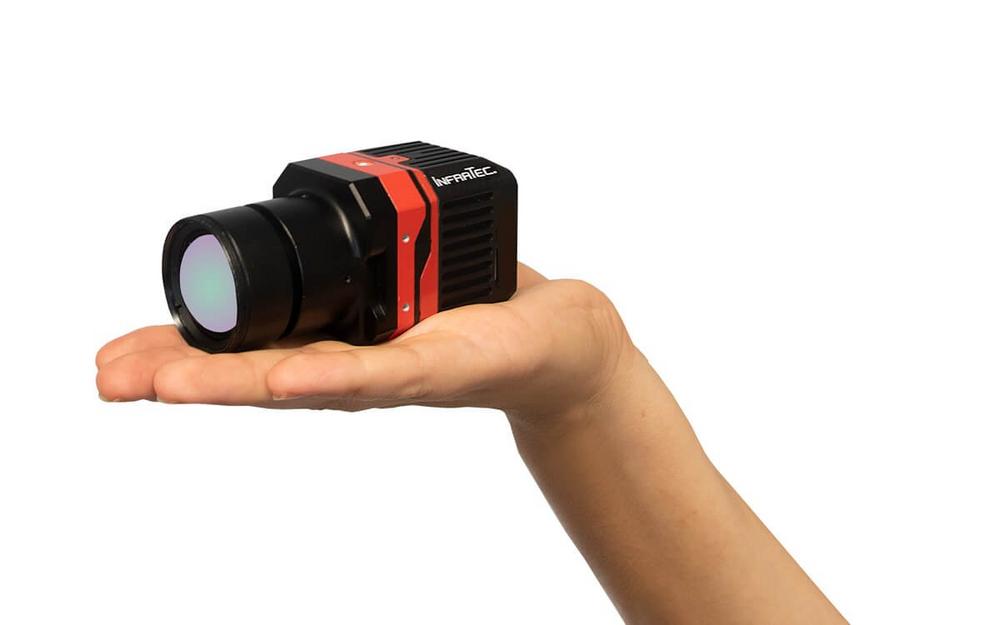

The PIR uc 605 can be ideally adapted to the respective measurement task. Various lenses can be configured on the IR module, including a super wide-angle lens. With a focal length of 5 mm, this lens captures large measurement objects with a single shot when the distance between camera and object is small. Its light weight and the extremely small dimensions of the light metal housing are further aspects. Thus, the camera can be easily installed even within very small installation spaces with simple mounting systems.
